Machine Way Cover Manufacturer from China

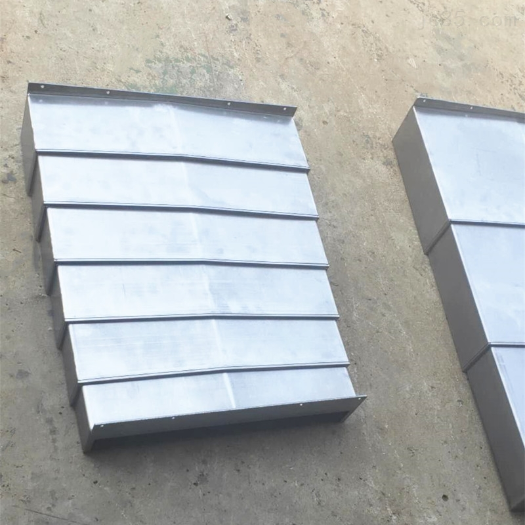

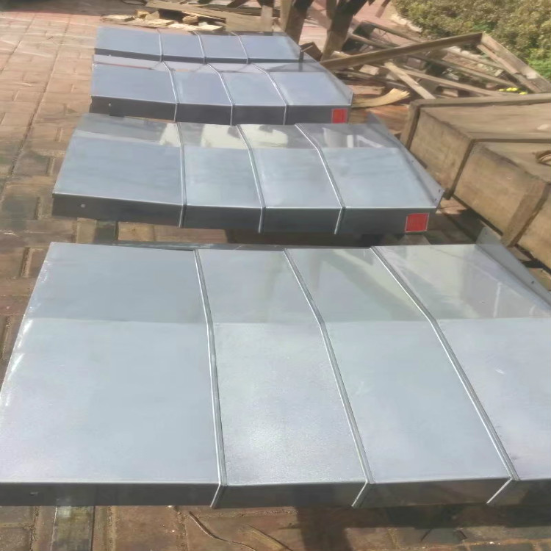

We can support steel telescopic way covers for CNC machine tools. Our products are available in flat and arched types, including single ridge, double ridge, triple ridge and side ridge styles, all can be custom-made according to customer drawings.

If you cannot measure the size parameters by yourself, our team can provide technical guidance.

Our stainless steel & cold rolled steel way covers feature excellent sealing performance, effective protection against iron filings, cutting fluid and accidental tool collision. With solid structure, elegant appearance and long service life, they are essential protective parts for machine tools.

Product Features

1. Material: Made of A3 cold rolled steel and stainless steel 1Cr13 / 304. Plate thickness from 1.5mm to 5mm, customized up to 8mm on request. Good resistance to coolant, emulsion and metal chips.

2. Neat appearance improves overall machine grade and economic value. Fireproof and flexible PU / rubber sealing strips are adopted between each section.

3. Standard running speed: 25m/min. High-speed customized structure can reach 400m/min.

4. Multiple structure shapes: flat, arched and various ridge types, fully customizable.

Design Parameters

Extended length, compressed length, maximum stroke, guide width, total cover width, total height, side height, top height, mounting height, mounting plate size, roller / slider height, material and plate thickness.

Available Materials

Cold rolled steel, carbon steel, 1Cr13, 1Cr18, 304 stainless steel.Smooth operation, no noise, no vibration, tight structure, perfect protection against chips and coolant.

• Low speed: sliding structure

• Medium speed: roller type structure

• High speed: synchronous parallel linkage structureStable precision and long service life.

Steel telescopic way cover is the classic and widely used protection for CNC machine guideways. It effectively blocks sharp metal chips and reduces cutting fluid penetration with optimized structure and wiper plates. Our covers fully meet modern machine tool requirements for high technology, precise installation and high running speed.

Advantages

• Suitable for high-speed movement up to 80m/min, stable and silent.

• Each section stretches and retracts synchronously, flexible and smooth.

• No disconnection or impact noise, longer service life.

• Extra stainless steel cover plate protects sealing strips from high-temperature chip burn and guideway scratch.

• Protects shield durability and guarantees machine machining precision.
